Temporal Forecasting with Enformer

This example demonstrates how to use the Enformer from the genformer package to predict multivariate temporal data. We’ll generate a dummy sine wave dataset and create a beautiful probabilistic forecast plot.

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from darts import TimeSeries
from genformer.models import Enformer

# Style for beautiful plots
plt.style.use('seaborn-v0_8-darkgrid')

/home/docs/checkouts/readthedocs.org/user_builds/genformer/envs/latest/lib/python3.12/site-packages/gluonts/json.py:102: UserWarning: Using `json`-module for json-handling. Consider installing one of `orjson`, `ujson` to speed up serialization and deserialization.
  warnings.warn(

# Generate dummy multivariate sine wave data
time_steps = 200
x = np.linspace(0, 50, time_steps)
series1 = (np.sin(x) + np.random.normal(0, 0.1, time_steps)).astype(np.float32)
series2 = (np.cos(x) + np.random.normal(0, 0.1, time_steps)).astype(np.float32)

df = pd.DataFrame({'sin_wave': series1, 'cos_wave': series2})
series = TimeSeries.from_dataframe(df)

# Split data
train, val = series[:-50], series[-50:]

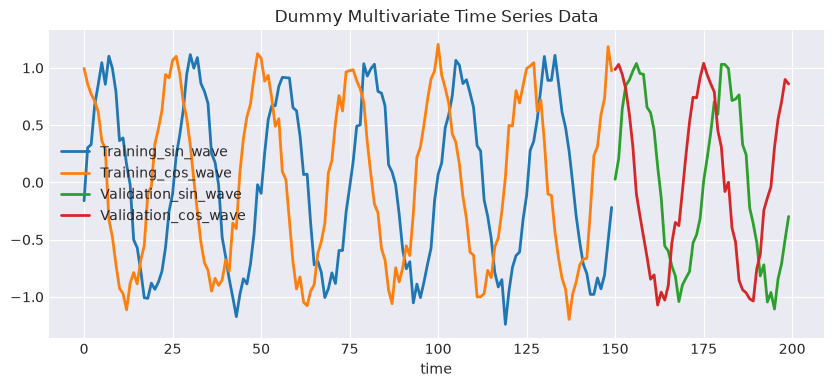

# Plot the dummy data
plt.figure(figsize=(10, 4))
train.plot(label='Training')
val.plot(label='Validation')
plt.title('Dummy Multivariate Time Series Data')
plt.show()

# Initialize Enformer
model = Enformer(
    input_chunk_length=24,
    output_chunk_length=12,
    num_samples_engression=10,
    n_epochs=2, # Keep low for quick demo
    batch_size=16
)

# Train the model (demo purposes)
model.fit(train)

/home/docs/checkouts/readthedocs.org/user_builds/genformer/envs/latest/lib/python3.12/site-packages/torch/nn/modules/transformer.py:143: UserWarning: enable_nested_tensor is True, but self.use_nested_tensor is False because encoder_layer.self_attn.batch_first was not True(use batch_first for better inference performance)
  self.encoder = TransformerEncoder(
GPU available: False, used: False
TPU available: False, using: 0 TPU cores
💡 Tip: For seamless cloud logging and experiment tracking, try installing [litlogger](https://pypi.org/project/litlogger/) to enable LitLogger, which logs metrics and artifacts automatically to the Lightning Experiments platform.

  | Name                | Type                | Params | Mode  | FLOPs
----------------------------------------------------------------------------
0 | criterion           | MSELoss             | 0      | train | 0
1 | train_criterion     | MSELoss             | 0      | train | 0
2 | val_criterion       | MSELoss             | 0      | train | 0
3 | train_metrics       | MetricCollection    | 0      | train | 0
4 | val_metrics         | MetricCollection    | 0      | train | 0
5 | encoder             | Sequential          | 192    | train | 0
6 | positional_encoding | _PositionalEncoding | 0      | train | 0
7 | transformer         | Transformer         | 548 K  | train | 0
8 | decoder             | Linear              | 1.6 K  | train | 0
----------------------------------------------------------------------------
550 K     Trainable params
0         Non-trainable params
550 K     Total params
2.201     Total estimated model params size (MB)
90        Modules in train mode
0         Modules in eval mode
0         Total Flops
/home/docs/checkouts/readthedocs.org/user_builds/genformer/envs/latest/lib/python3.12/site-packages/pytorch_lightning/utilities/_pytree.py:21: `isinstance(treespec, LeafSpec)` is deprecated, use `isinstance(treespec, TreeSpec) and treespec.is_leaf()` instead.
/home/docs/checkouts/readthedocs.org/user_builds/genformer/envs/latest/lib/python3.12/site-packages/torch/utils/data/dataloader.py:752: UserWarning: 'pin_memory' argument is set as true but no accelerator is found, then device pinned memory won't be used.
  super().__init__(loader)

Epoch 1: 100%|██████████| 8/8 [00:01<00:00,  4.98it/s, energy_score_train_loss_step=0.199, energy_score_train_loss_epoch=0.290]

`Trainer.fit` stopped: `max_epochs=2` reached.

Epoch 1: 100%|██████████| 8/8 [00:01<00:00,  4.97it/s, energy_score_train_loss_step=0.199, energy_score_train_loss_epoch=0.290]

Enformer(output_chunk_shift=0, d_model=64, nhead=4, num_encoder_layers=3, num_decoder_layers=3, dim_feedforward=512, dropout=0.1, activation=relu, norm_type=None, custom_encoder=None, custom_decoder=None, input_chunk_length=24, output_chunk_length=12)
